基本配件：
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

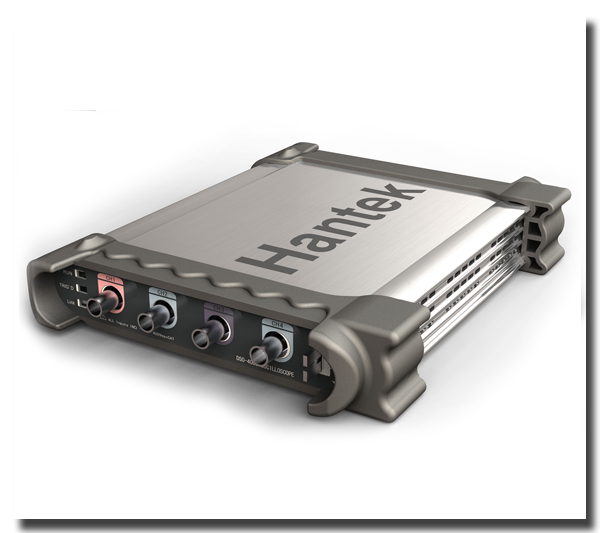

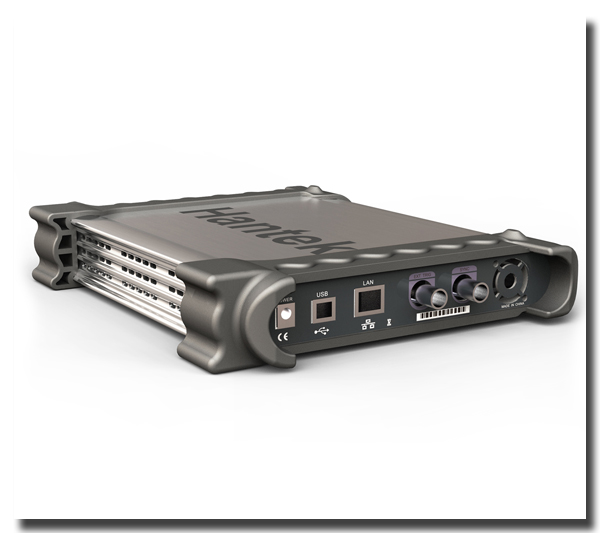

3．其它图片：
 |
|
|
|
|
|
|
4. 特点
5. 技术指标
| Mode | Analog Channels | Digital Channels | AFG | DMM | BandWidth | Sample Rate | ETS | Resulution |
| DSO3064 | 4 Channel | -- | -- | -- | 60 MHz | 200Ms/S | 50Gs/S | 8 |
| DSO3064A | 4 Channel | -- | 25MHz | -- | 60 MHz | 200Ms/S | 50Gs/S | 8 |
| DSO3062L | 2 Channel | 16 Channel | 25MHz | -- | 60 MHz | 200Ms/S | 50Gs/S | 8 |
| DSO3062AL | 2 Channel | 16 Channel | 25MHz | -- | 60 MHz | 200Ms/S | 50Gs/S | 8 |
| DSO3062ALM | 2 Channel | 16 Channel | 25MHz | V,OHM,I,F,D,C | 60 MHz | 200Ms/S | 50Gs/S | 8 |
| DSO3054R10A | 4 Channel | -- | 25MHz | -- | 50 MHz | 150Ms/S | 50Gs/S | 10 |
| DSO3054R10 | 4 Channel | -- | -- | -- | 50 MHz | 150Ms/S | 50Gs/S | 10 |
| DSO3204 | 4 Channel | -- | -- | -- | 200 MHz | 500Ms/S | 50Gs/S | 8 |
| DSO3204A | 4 Channel | -- | 25MHz | -- | 200 MHz | 500Ms/S | 50Gs/S | 8 |
| DSO3202L | 2 Channel | 16 Channel | -- | -- | 200 MHz | 500Ms/S | 50Gs/S | 8 |
| DSO3202AL | 2 Channel | 16 Channel | 25MHz | -- | 200 MHz | 500Ms/S | 50Gs/S | 8 |
| DSO3202ALM | 2 Channel | 16 Channel | 25MHz | V,OHM,I,F,D,C | 200 MHz | 500Ms/S | 50Gs/S | 8 |
| DSO3502A | 2 Channel | -- | 25MHz | -- | 500 MHz | 1.5 Gs/S | 50Gs/S | 8 |
| DSO3504 | 4 Channel | -- | -- | -- | 500 MHz | 1.5 Gs/S | 50Gs/S | 8 |
| DSO3504A | 4 Channel | -- | 25MHz | -- | 500 MHz | 1.5 Gs/S | 50Gs/S | 8 |
| DSO3502L | 2 Channel | 16 Channel | -- | -- | 500 MHz | 1.5 Gs/S | 50Gs/S | 8 |
| DSO3502AL | 2 Channel | 16 Channel | 25MHz | -- | 500 MHz | 1.5 Gs/S | 50Gs/S | 8 |
| DSO3602A | 2 Channel | -- | 25MHz | -- | 600 MHz | 2 Gs/S | 50Gs/S | 8 |
| DSO3604 | 4 Channel | -- | -- | -- | 600 MHz | 2 Gs/S | 50Gs/S | 8 |
| DSO3604A | 4 Channel | -- | 25MHz | -- | 600 MHz | 2 Gs/S | 50Gs/S | 8 |
| DSO3602L | 2 Channel | 16 Channel | -- | -- | 600 MHz | 2 Gs/S | 50Gs/S | 8 |
| DSO3602AL | 2 Channel | 16 Channel | 25MHz | -- | 600 MHz | 2 Gs/S | 50Gs/S | 8 |
| DSO3702A | 2 Channel | -- | 25MHz | -- | 700 MHz | 5 Gs/S | 50Gs/S | 8 |
| DSO3704 | 4 Channel | -- | -- | -- | 700 MHz | 5 Gs/S | 50Gs/S | 8 |
| DSO3704A | 4 Channel | -- | 25MHz | -- | 700 MHz | 5 Gs/S | 50Gs/S | 8 |
6．应用程序：
软件支持: Windows 2000, Windows XP ,VISTA,Windows 7
7．二次开发：
提供常用开发平台下的DEMO源代码（VC、CVI、VB、LABVIEW）和开发
技术支持。
|
|||||
|
|||||
 |
